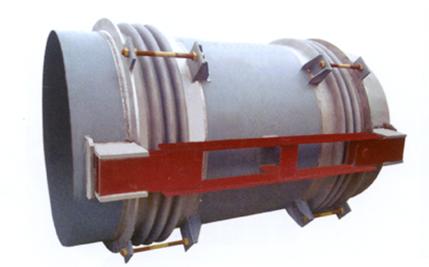

復式鉸鏈橫向型波紋膨脹節
復式鉸鏈橫向型波紋膨脹節
復式鉸鏈橫向型波紋膨脹節
產品型號：GDJHB
口徑：DN100-DN2500
工作壓力：0.25-2.5MPa
性能特點：該類膨脹節實際是用兩個角向型膨脹節，用長的中間接管組合而成的。它可以吸收單平面方向上的橫向曲位移。它們的鉸鏈可以承受內壓的推力。
通徑 | 波數 | 壓力 | 橫向位移mm/兩波紋管中心距L.mm | 角向 | 外形尺寸 | ||||
產品長度L mm | |||||||||
1500 | 2000 | 2500 | 3000 | 3500 | |||||
100 | 4+4 | 0.25 | ±128/900 | ±199/1400 | ±270/1900 | ±341/2400 | | 9 | 430 |
0.6 | ±99/900 | ±155/1400 | ±210/1900 | ±265/2400 | | 16 | |||
1.0 | ±79/900 | ±122/1400 | ±166/1900 | ±210/2400 | | 27 | |||
1.6 | ±61/900 | ±95/1400 | ±130/1900 | ±164/2400 | | 52 | |||
2.5 | ±65K/900 | ±100K/1400 | ±136K/1900 | ±172K/2400 | | 62 | |||
125 | 0.25 | ±107/900 | ±167/1400 | ±226/1900 | ±286/2400 | | 15 | 460 | |
0.6 | ±82/900 | ±127/1400 | ±173/1900 | ±218/2400 | | 27 | |||
1.0 | ±65/900 | ±100/1400 | ±136/1900 | ±172/2400 | | 46 | |||
1.6 | ±50/900 | ±78/1400 | ±106/190 | ±134/2400 | | 89 | |||
2.5 | ±52K/900 | ±81K/1400 | ±110K/1900 | ±138K/2400 | | 105 | |||
150 | 0.25 | ±91/900 | ±142/1400 | ±193/1900 | ±244/2400 | | 23 | 480 | |
0.6 | ±68/900 | ±105/1400 | ±143/1900 | ±180/2400 | | 43 | |||
1.0 | ±53/900 | ±83/1400 | ±113/1900 | ±143/2400 | | 74 | |||
1.6 | ±41/900 | ±64/1400 | ±86/1900 | ±109/2400 | | 142 | |||
2.5 | ±42K/900 | ±66K/1400 | ±90K/1900 | ±113K/2400 | | 167 | |||
200 | 0.25 | ±126/900 | ±197/1400 | ±267/1900 | ±337/2400 | | 32 | 560 | |
0.6 | ±82/900 | ±127/1400 | ±173/1900 | ±218/2400 | | 100 | |||
1.0 | ±45/850 | ±71/1350 | ±97/1850/ | ±123/2350 | | 225 | |||
1.6 | ±37/850 | ±59/1350 | ±81/1850 | ±103/2350 | | 225 | |||
2.5 | | ±57K/1300 | ±79K/1800 | ±100K/2300 | | 476 | |||
250 | 0.25 | ±104/900 | ±162/1400 | ±220/1900 | ±277/2400 | | 56 | 720 | |
0.6 | ±65/900 | ±100/1400 | ±136/1900 | ±172/2400 | | 177 | |||
1.0 | ±45/850 | ±71/1350 | ±97/1850 | ±123/2350 | | 400 | |||
1.6 | ±37/850 | ±59/1350 | ±81/1850 | ±103/2350 | | 400 | |||
2.5 | | ±57K/1300 | ±79K/1800 | ±100K/2300 | | 859 | |||
300 | 0.25 | ±104/850 | ±166/1350 | ±227/1850 | ±288/2350 | | 68 | 820 | |
0.6 | ±67/850 | ±106/1350 | ±150/1900 | ±189/2400 | | 208 | |||
1.0 | ±48/850 | ±75/1350 | ±103/1850 | ±131/2350 | | 478 | |||
1.6 | | ±55/1250 | ±76/1750 | ±98/2250 | ±120/2750 | 922 | |||
2.5 | | ±57K/1250 | ±79K/1750 | ±102K/2250 | ±125K/2750 | 1087 | |||
350 | 0.25 | ±92/850 | ±147/1350 | ±200/1850 | ±255/2350 | | 98 | 900 | |
0.6 | ±56/850 | ±90/1350 | ±123/1850 | ±156/2350 | | 309 | |||
1.0 | ±39/800 | ±64/1300 | ±88/1800 | ±112/2300 | | 714 | |||
1.6 | | ±48/1250 | ±67/1750 | ±86/2250 | ±106/2750 | 1379 | |||
2.5 | | ±46K/1200 | ±65K/1700 | ±85K/2200 | ±104K/2700 | 1632 | |||
400 | 0.25 | ±80/850 | ±127/1350 | ±175/1850 | ±222/2350 | | 136 | 1050 | |
0.6 | ±50/850 | ±80/1350 | ±110/1850 | ±197/2350 | | 432 | |||
1.0 | ±34/800 | ±54/1300 | ±75/1800 | ±96/2300 | ±117/2800 | 1003 | |||
1.6 | | ±42/1250 | ±58/1750 | ±75/2250 | ±91/2750 | 1942 | |||
2.5 | | ±40K/1150 | ±58K/1650 | ±75K/2150 | ±93K/2650 | 2282 | |||
450 | 0.25 | | ±105/1250 | ±147/1750 | ±189/2250 | ±231/2750 | 184 | 1160 | |
0.6 | | ±66/1250 | ±92/1750 | ±118/2250 | ±144/2750 | 593 | |||
1.0 | | ±48/1250 | ±67/1750 | ±86/2250 | ±106/2750 | 1378 | |||
1.6 | | ±34/1150 | ±49/1650 | ±64/2150 | ±79/2650 | 2671 | |||
2.5 | | ±34K/1150 | ±45K/1500 | ±59K/2000 | ±74K/2500 | 3134 | |||
